Advancing Clean room Automation: IBC Lift Blender

In modern pharmaceutical, food, and cosmetics manufacturing facilities, the handling, lifting, and blending of powder and granule materials demand the highest levels of safety, containment, and precision.

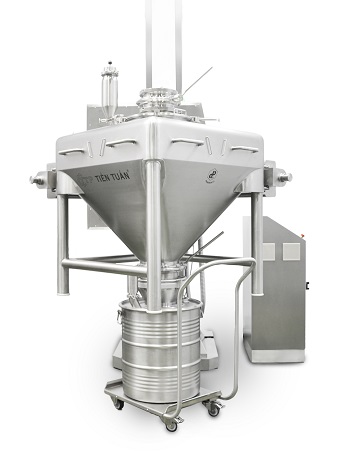

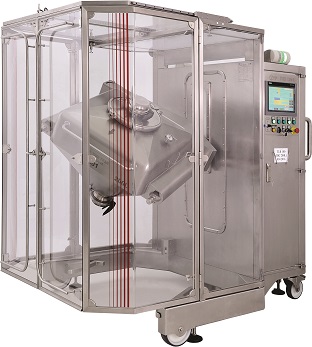

The IBC Lift Blender, engineered and manufactured by Tien Tuan, is an integrated 2-in-1 solution that combines automated IBC lifting and blending functions, meeting the stringent requirements of GMP-compliant manufacturing environments.

1. Dual-Safety IBC Clamping Mechanism

• The IBC clamping arms are secured by a robust mechanical locking mechanism, combined with an automatic pneumatic system for clamping force monitoring and control.

• The equipment is integrated with an Interlock safety system: the IBC must be securely clamped and the required pneumatic pressure must be reached before the control system enables the lifting operation. This safety mechanism significantly minimizes the risk of loosening, misalignment, or accidental container dropping during elevated operation.

2. Integrated 2-in-1 Functionality_Automatic Lifting & Bidirectional Blending

• The device serves both as a specialized container lifting system and as a reverse mixing machine according to the parameters set on the HMI screen.

• The paddles allow for even mixing and increase the ability to mix thoroughly at minimal output.

3. Ball Screw Drive System – Designed for Cleanroom Applications

• The vertical lifting mechanism is powered by an electric motor coupled with a high-precision Ball Screw drive system.

• Unlike conventional chain-driven, cable-driven, or hydraulic lifting systems, which may pose potential contamination risks from lubricant or hydraulic oil leakage, the ball screw mechanism provides high mechanical reliability, smooth and precise movement, and excellent load-bearing capability while helping maintain a clean production environment.

4. Automatic Zero Positioning

• The control system integrates an encoder and intelligent travel limit sensors for precise positioning.

• Upon completion of the blending cycle, the rotating assembly and IBC automatically return to  Home/Zero Position and stop accurately. This eliminates the need for manual alignment, reducing unloading time and improving batch changeover efficiency.

5. Soft Start & Soft Stop

• Both rotational and lifting speeds are controlled through a variable frequency drive (VFD)  combined with optimized PLC control.

• The system minimizes sudden jerks and mechanical shocks during startup and braking, reducing mechanical wear while helping prevent material segregation and ensuring a stable blending process.
